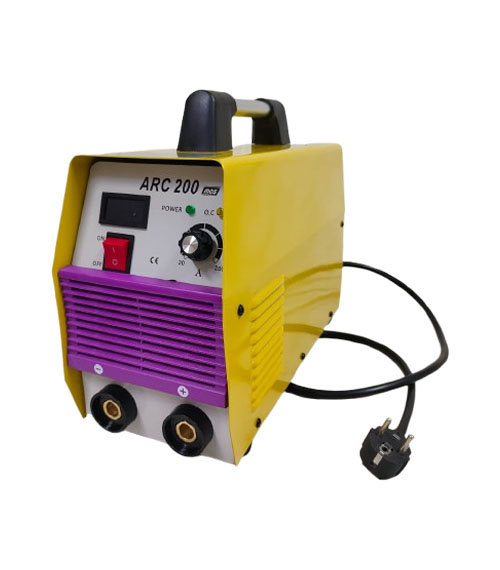

    • ARC 200 Mosfet

    Input Voltage (V): AC 220 ± 15%
    Rated Frequency (Hz): 50/60
    Rated Input Current (A): 35
    No-load Voltage (V): 58
    Output Current Range (A): 30-200
    Rated Output Voltage (V): 26.4
    Duty Cycle (%): 60%

    No Load Loss (W): 60
    Efficiency (%): 80
    Power Factor: 0.73
    Insulation Grade: IP21S
    Protection Grade: F
    Net Weight (KG): 5.5
    Dimension (MM): 400x160x300

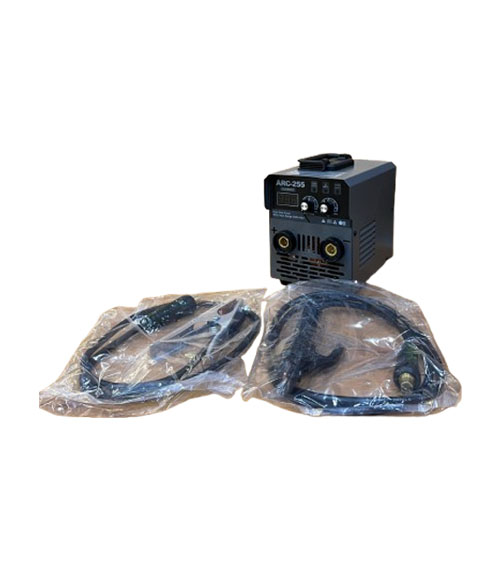

    ARC 255

    Input Voltage (V): 230V/415V
    Rated Frequency (Hz): 50/60
    Rated Input Current (A): 27.8/15.4
    No-load Voltage (V): 65/75
    Output Current Range (V): 20-145
    Rated Output Voltage: 25.8

    Duty Cycle: 60%
    Insulation Grade: F
    Protection Grade: IP21
    Net Weight (Kg): 3.6
    Dimension (MM): 250x160x220

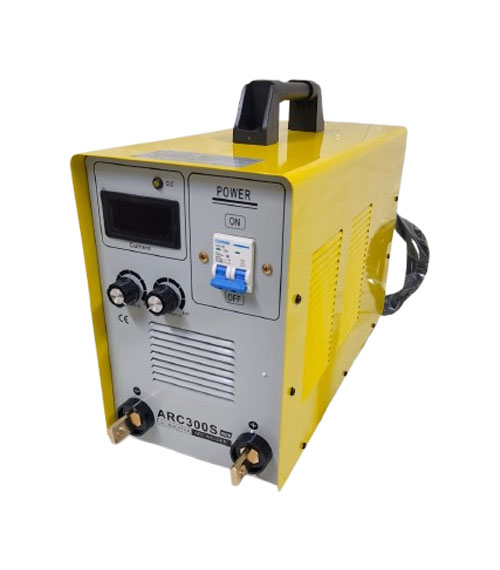

    ARC 300 S

    Input Voltage (V): AC 220 ± 15%
    Rated Frequency (Hz): 50/60
    Rated Input Current(A): 47
    No-load Voltage (V): 65
    Output Current Range (A): 30-300
    Rated Output Voltage (V): 29.2
    Duty Cycle (%): 60%

    No Load Loss (W): 60
    Efficiency (%): 80
    Power Factor: 0.73
    Insulation Grade: IP21S
    Protection Grade: F
    Net Weight (KG): 8.5
    Dimension (MM): 470x200x255

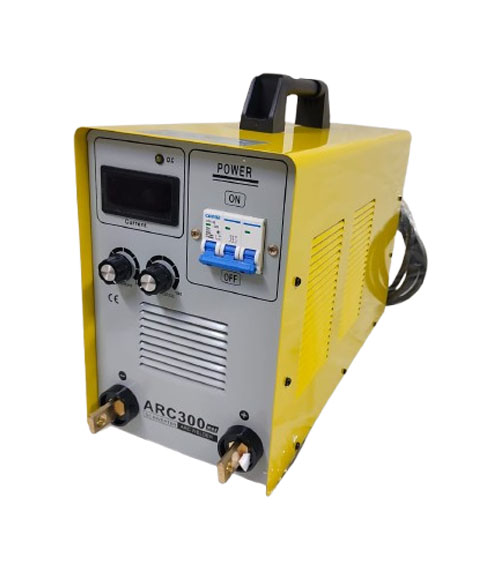

    ARC 300

    Input Voltage (V): AC 380 ± 15%
    Frequency (Hz): 50/60
    Rated Input Current (A): 16.8
    No Load Voltage (V): 63
    Output Current Range (A): 30-300
    Rated Output Voltage (V): 30.8
    Duty Cycle (%): 60%

    No Load Loss (W): 80
    Efficiency (%): 85
    Power Factor: 0.93
    Insulation Grade: IP21S
    Protection Grade: F
    Net Weight (KG): 8.5
    Dimension (MM): 470x200x255

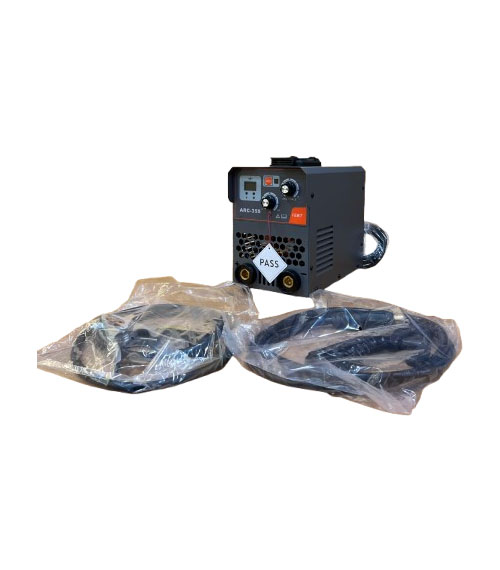

    ARC 355

    Input Voltage (V): “230V/415V”
    Frequency (Hz): 50/60
    No Load Voltage (V): 65/70
    Rated Input Current (A):
    “230V:31.4, “415V:20.9”
    Output Current Range (A):
    “230V:20-160A, “415V:20-185A”

    Rated Output Voltage (V):
    “230V:26.4, “415V:27.4”
    Duty Cycle (%): 60%
    Insulation Grade: F
    Protection Grade: IP21
    Net Weight (KG): 4.25
    Dimension (MM): 292×160×230

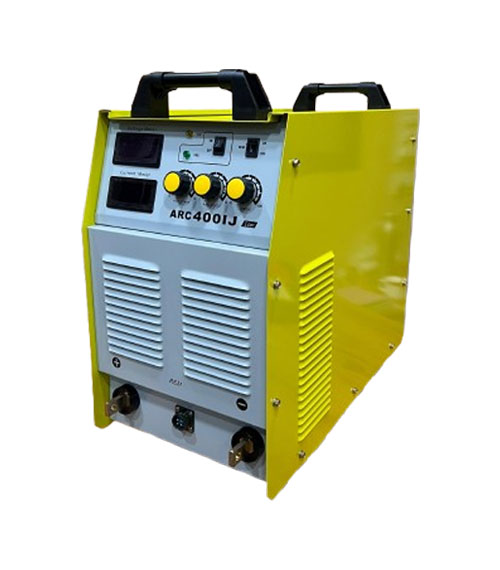

    ARC 400 IJ

    Input Voltage (V): 415V
    Frequency (Hz): 50/60
    Rated Input Current (A): 27
    No Load Voltage (V): 72
    Output Current Range (A): 20-400
    Rated Output Voltage (V): 36

    Duty Cycle (%): 60%
    Insulation Grade: F
    Protection Grade: IP21
    Net Weight (KG): 29
    Dimension (MM): 515×265×405

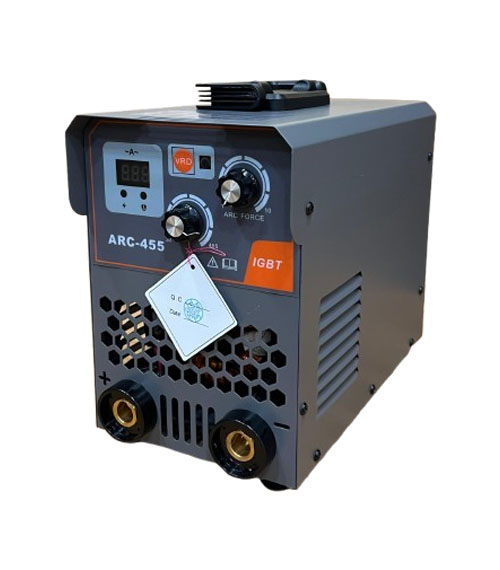

    ARC 455

    Input Voltage (V): 230V/415V
    Frequency (Hz): 50/60
    Rated Input Current (A): “230V:36.5,
    415V:25.4″
    No Load Voltage (V): 65/70
    Output Current Range (A): “230V:20-180A,
    415V:20-215A”

    Rated Output Voltage (V): “230V:27.2,
    415V:28.6″
    Duty Cycle (%): 60%
    Insulation Grade: F
    Protection Grade: IP21
    Net Weight (KG): 4.25
    Dimension (MM): 292×160×230

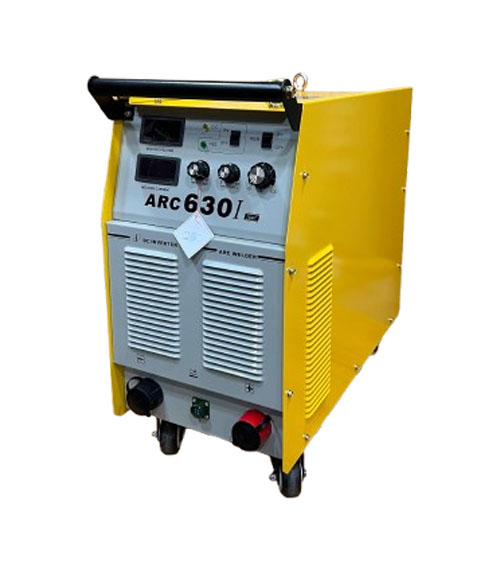

    ARC 630 I

    Input Voltage (V): AC 380 ± 15%
    Frequency (Hz): 50/60
    Rated Input Current (A): 53.2
    No Load Voltage (V): 84
    Output Current Range (A): 60-630
    Rated Output Voltage (V): 44
    Duty Cycle (%): 60

    No Load Loss (W): 300
    Efficiency (%): 85
    Power Factor: 0.93
    Insulation Grade: F
    Protection Grade: IP21S
    Net Weight (KG): 45
    Dimension (MM): 610x370x730
