Laser Welding

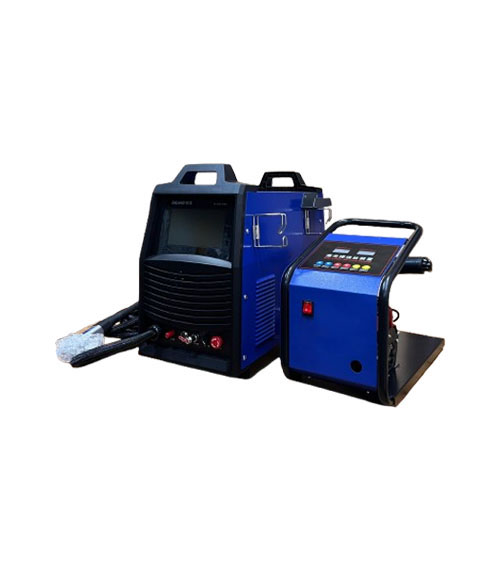

Laser 1200 A

Laser Power: 1200W
Collimation Focal Length: 50mm
Focus Focal Length: 150mm
Protect Lens: 99.5% Transmittance
Laser Wave Length: 1080±10NM
Optical Fiber Length: 1200W Standard 5M
Working Method: Continuous Pulse
Cooling Method: Air Conditioning Direct Cooling

Welding Speed Range:0-120mm/s
Working Temperature Range: 0-50°C
Working Humidity Range: <85% No Condesation
Welding Thickness: 0.5-4mm
Welding Gap Requirements: <0.5mm
Input Voltage & Frequency: AC220V, 50Hz
Size: 773x520x304mm (LXWXH)
Weight: 53kg

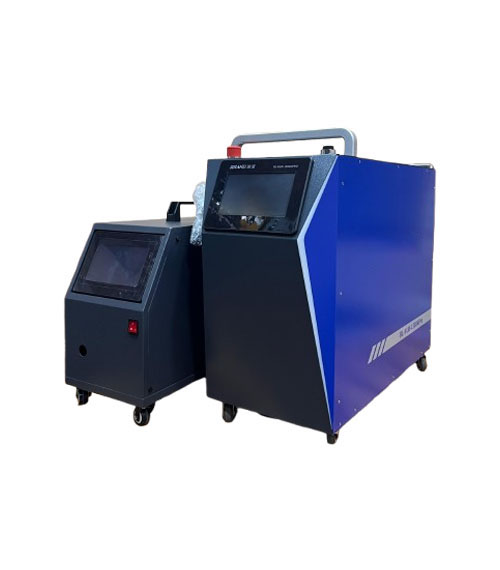

Laser 1500 A

Laser Power: 1500W
Collimation Focal Length: 50mm
Focus Focal Length: 150mm
Protect Lens: 99.5% Transmittance
Laser Wave Length: 1080±10NM
Optical Fiber Length: 1500W Standard 5M
Working Method: Continuous Pulse
Cooling Method: Air Conditioning Direct Cooling

Welding Speed Range:0-120mm/s
Working Temperature Range: 0-50°C
Working Humidity Range: <85% No Condesation
Welding Thickness: 0.5-5mm
Welding Gap Requirements: <0.5mm
Input Voltage & Frequency: AC220V, 50Hz
Size: 773x520x304mm (LXWXH)
Weight: 55kg
