Skill Weld Equipment

Tig Pulse/Ac-Dc Series

  • Skill Weld Equipment
  • Tig Welding
  • Tig Pulse/Ac-Dc Series

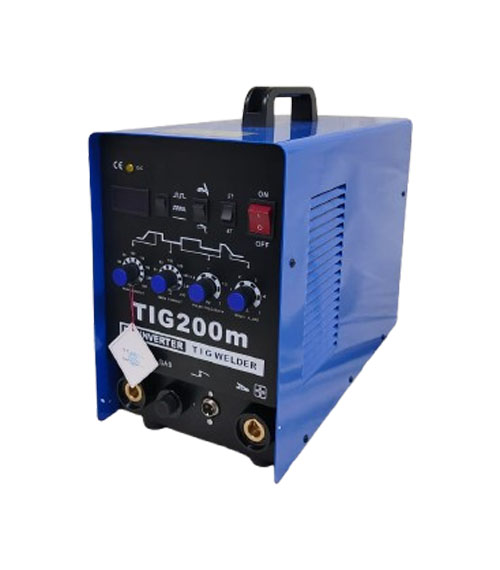

    • TIG 200 M

    Input Voltage (V): AC 220 ± 15%
    Frequency (Hz): 50/60
    Rated Input Current (A): 28
    No Load Voltage (V): 42
    Output Current Range (A): 10-200
    Rated Output Voltage (V): 18
    Duty Cycle (%): 30
    No Load Loss (W): 40

    Arcing Way: HF
    Efficiency (%): 80
    Power Factor: 0.73
    Insulation Grade: F
    Protection Grade: IP21S
    Net Weight (KG): 7.4
    Dimension (MM): 400x175x290

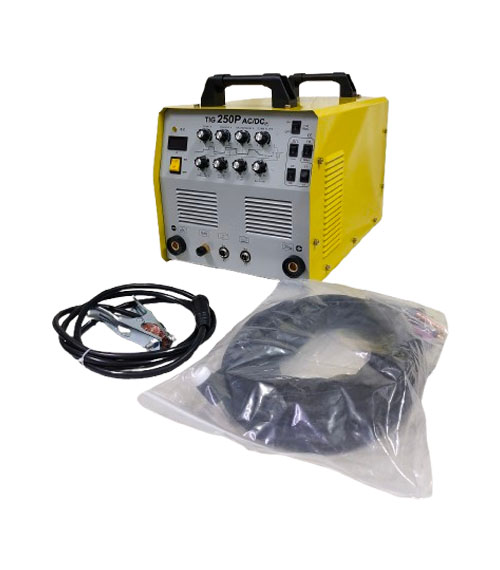

    TIG 250 P AC/DC

    Input Voltage (V): AC 220 ± 15%
    Frequency (Hz): 50/60
    Rated Input Current (A): 39
    No Load Voltage (V): 50
    Output Current Range (A): 20-250
    Rated Output Voltage (V): 20
    Pre-flow (S): 0-2
    Pulse Width (%): 20-80
    Down Slope (S): 0-5
    Post Flow (S): 2-10

    Remote Control: Have
    Arcing Way: HF
    Efficiency: 80
    Duty Cycle (%): 60
    Power Factor: 0.73
    Insulation Grade: F
    Protection Grade: IP31S
    Net Weight (Kg): 14.2
    Dimension (mm): 470x210x380

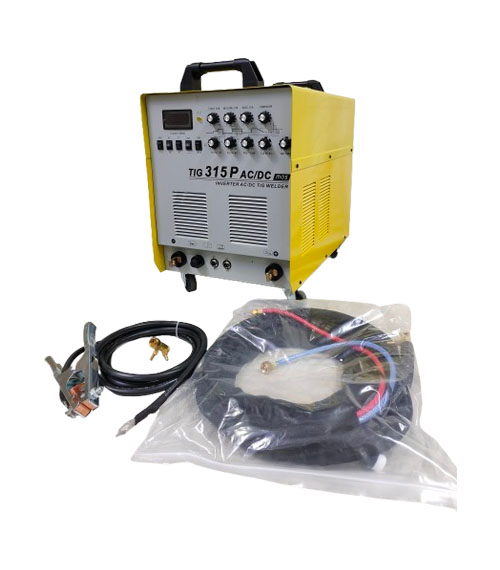

    TIG 315 P AC/DC

    Input Voltage (V): AC 380 ± 15%
    Frequency (Hz): 50/60
    Rated Input Current (A): MMA18.4/TIG12.7
    No Load Voltage (V): 54
    Output Current Range (A): 10-300
    Rated Output Voltage (V): MMA32/TIG22
    Duty Cycle (%): 60
    No Load Loss (W): 60

    Remote Control: Have
    Arcing Way: HF
    Efficiency (%): 85
    Duty Cycle (%): 60
    Power Factor: 0.93
    Insulation Grade: F
    Protection Grade: IP21S
    Net Weight (KG): 34.1
    Dimension (MM): 580x310x680

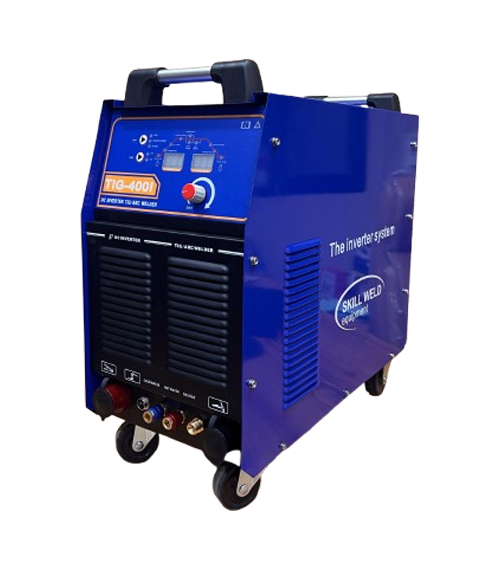

    TIG 400 I

    Input Voltage (V): AC 380V ± 15%
    Frequency (Hz): 50/60
    Tig Max Current (A): 380
    ARC Max. Current (A): 320
    Rate Input Capacity (KVA): 12
    Unload Voltage (V): 70
    Rate Output Voltage (V): 25.2

    Duty Cycle (%): 60
    Efficiency: 85
    Unit Weight (KG): 28
    Packaging Size (MM): 685x445x530
    ARC Way: High Frequency
    Proper Broad Thickness (MM): 0.3-8

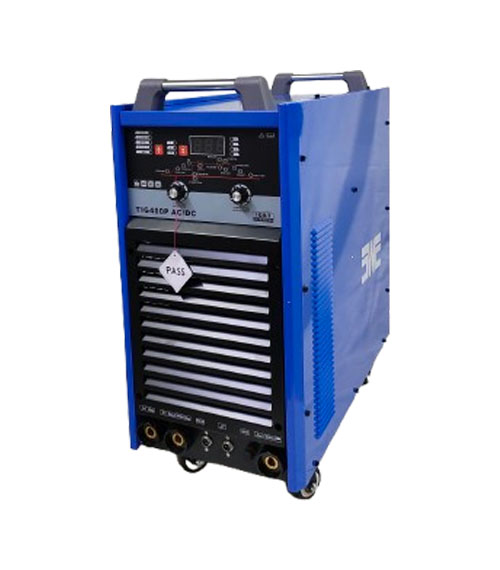

    TIG 400 P AC/DC

    Input Voltage (V): AC 380 ± 15%
    Frequency (Hz): 50/60
    Rated Input Current (A): 13.6
    No Load Voltage (V): 70
    Output Current Range (A): 5-400
    Rated Output Voltage (V): 22.6
    Pre-flow (S): 0-15
    Pulse Width (%): 1-99
    Down Slope (S): 0-15
    Post Flow (S): 0-15

    Remote Control: Have
    Arcing Way: HF
    Efficiency (%): 85
    Duty Cycle (%): 60
    Power Factor: 0.93
    Insulation Grade: F
    Protection Grade: IP21S
    Net Weight (KG): 55
    Dimension (MM): 640x330x730

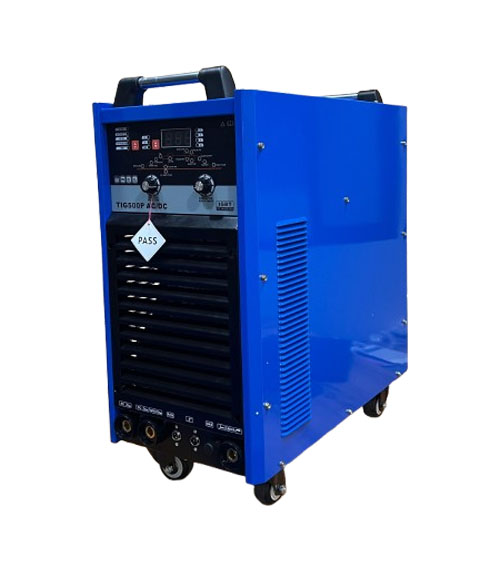

    TIG 500 P AC/DC

    Input Voltage: 415V
    Frequency: 50/60
    Input Content: Tig AC: 16.1, MMA: 21.8
    No Load Voltage: 70-90
    Output Current: Tig: DC 8-410, Tig: AC 25-370, MMA: 8-360
    Output Voltage: Tig: DC 26.4, Tig: AC 24.8, MMA: 8-360

    Duty Cycle:60%
    Frequency: 80% – 85%
    Protection Grade: IP21
    Insulation Grade: F
    Size: 640x330x690
    Weight: 65
